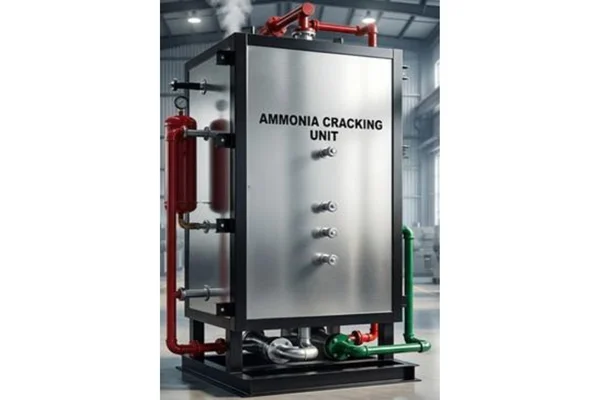

Ammonia Cracking Unit
PSG Engineering Company Ammonia Cracking Unit (ACU) is an industrial gas generator designed to convert liquid ammonia (NH₃) into a mixture of hydrogen (H₂) and nitrogen (N₂) gases. The resulting gas mixture is primarily used to create a reducing atmosphere in heat treating, brazing, annealing, and sintering furnaces. Typically, the gas composition is 75% hydrogen and 25% nitrogen, making it safe and effective for metallurgical processes.
Working Principle: – The liquid ammonia is first vaporized and then passed through a high-temperature retort furnace containing a nickel-based catalyst. At temperatures of 850–950°C, ammonia decomposes according to the reaction:
Our Products
| Parameter | Specification /Range |
| Capacity (H2/N2 Gas Mixture | 5-200 Nm3/hr (Customizable) |
| H2 / N2 Ratio | 75% H2 /25 % N2 |
| Ammonia feed | Liquid NH3, Via Tank or Cylinder |
| Ammonia Consumption | Depends on out put gas capacity (0.5- 1.0 Kg/cm2g / 1.0- 6.0kg/cm2g NH3 Per Nm3 H2 |
| Operating Pressure | 0.5 – 1.0 Kg/cm2g – 1.0- 3.0 Kg/cm2g(Customizable) |
| Cracking Furnace Type | Vertical Retort Tube With Nickel – Based Catalyst |
| Furnace Heating | Electric |
| Operating Temperature | 850 – 950 Deg o c |
| Catalyst | Nickel-based high-efficiency catalyst |
| Gas Cooling | Air or water-cooled cooler |
| Gas Purification | Moisture trap, ammonia scrubber, filter assembly |
| Control System | PLC / Microcontroller with temperature & pressure monitoring |
| Safety Features | Emergency shut-off, safety interlocks, nonreturn valves, alarms |
| Skid /Mechanical | Skid-mounted, mild steel / stainless steel, insulated piping |
| Optional Features | Remote monitoring, automatic ammonia refill, custom skid size |
| Applications | Heat treatment, annealing, brazing, sintering, industrial hydrogen supply |
2NH3→3H2+N2
The resulting gas mixture is then cooled, purified, and delivered to the furnace or industrial process.
Key Features:
- Continuous and reliable hydrogen-nitrogen gas generation
- Skid-mounted for easy installation and mobility
- High-efficiency nickel catalyst for complete cracking
- Integrated cooler and purifier for clean output gas
- PLC or microcontroller-based control system with safety interlocks
Applications: –
- Heat treatment furnaces (annealing, brazing, sintering)
- Metallurgical processes requiring a reducing atmosphere
- Industrial hydrogen supply
- Alternative to bottled gases and endothermic gas generators
Benefits: –
- Low-cost, on-site hydrogen production
- CO-free and safe for sensitive processes
- Compact footprint for easy integration
- Reduces dependency on multiple gas cylinders
Optional Features: –
- Automatic ammonia refill system
- Remote monitoring and control
- Customized skid and layout as per plant requirements
Payment Mode: – Bank Transfer or any mutually agreed method.
Delivery Period: – Mutually agreed
Deliver Place – We provide delivery of our Ammonia Cracking unit all over India as well as to international locations, ensuring safe and timely dispatch to your site
